Agricultural Laser Land Level System High Quality Red Beam Land Laser Leveling Machine.
The OZAg.360 Laser machine control system from Oz precision is a simple single channel system with an electric output to control the PT solenoids of machinery. It consists of the OPCB.21 control box, connecting cables and the OPRC.005 360º laser receiver

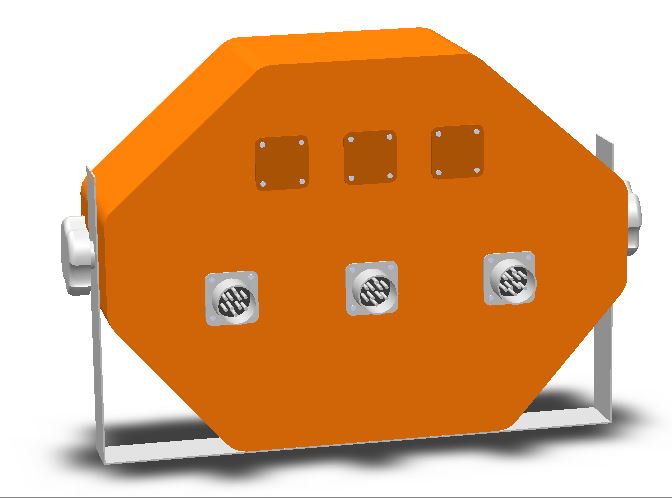

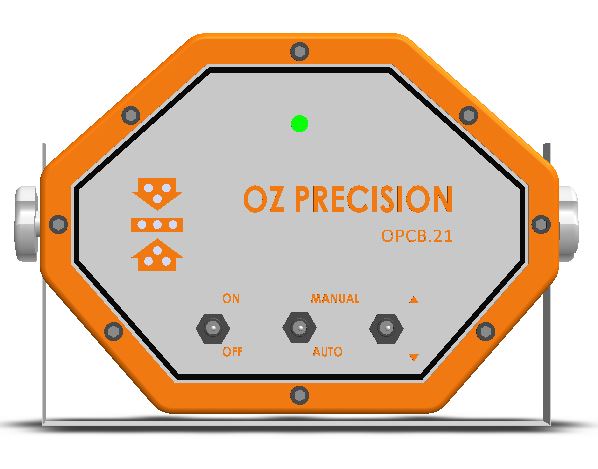

1.Control panel /Box

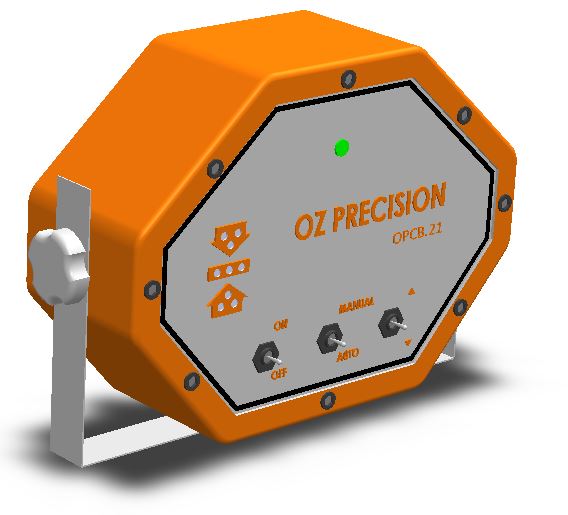

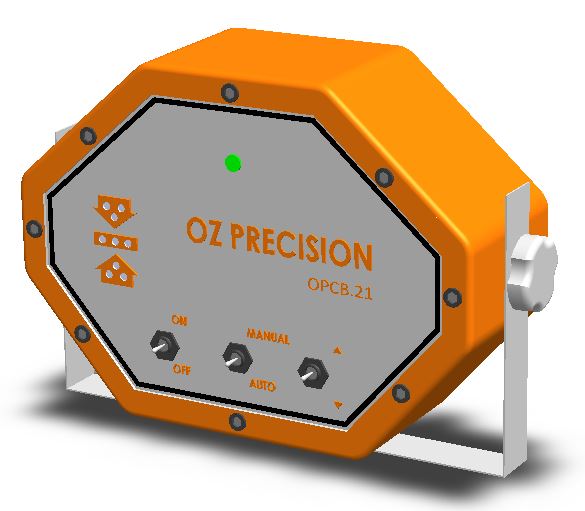

The OPCB.21 features three grade accuracies, and the user can choose from automatic control with override facility or manual control.
Simple to use and set-up, the rugged construction of the control box, connecting cables and OPRC.005 laser receiver makes it able to withstand harsh operating environments.

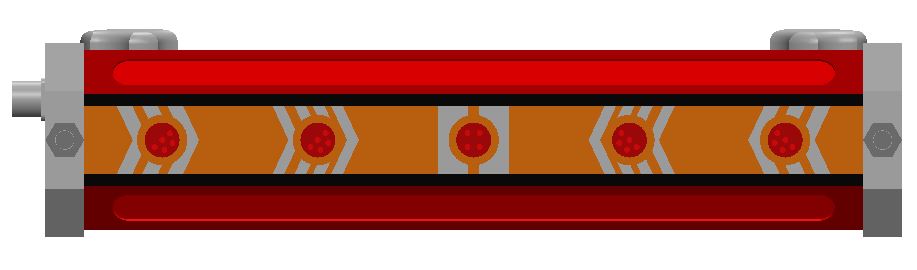

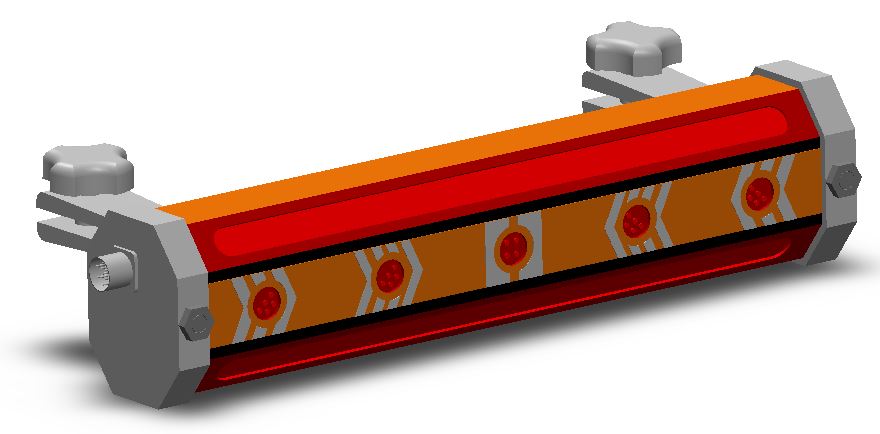

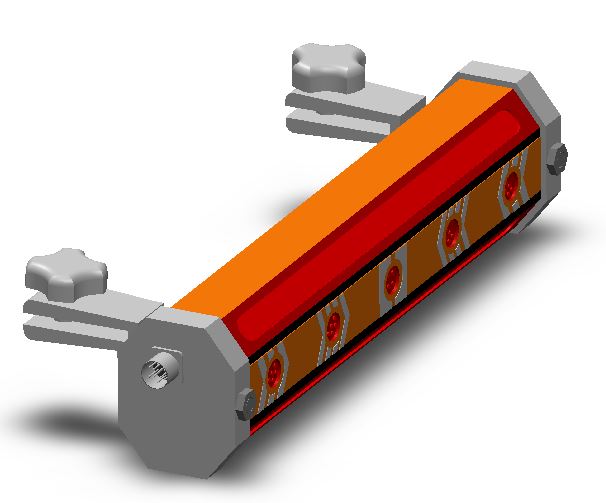

2.Universal laser sensor/ receiver

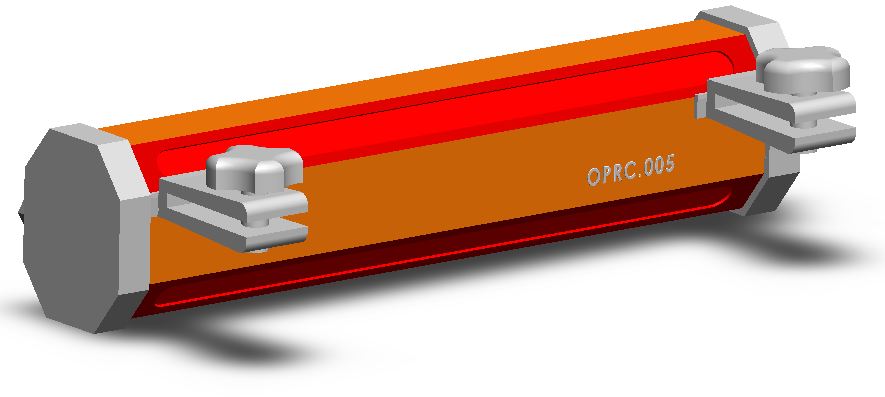

The Oz precision Proportional Laser Receiver is a highly precise sensor for grade measurement. It works with all common rotary laser transmitters. Deviations are recorded with millimeter precision in a reception range of 360°. This allows for proportional evaluation over the entire reception range.
2.Universal laser sensor/ receiver
The Oz precision Proportional Laser Receiver is a highly precise sensor for grade measurement. It works with all common rotary laser transmitters. Deviations are recorded with millimeter precision in a reception range of 360°. This allows for proportional evaluation over the entire reception range.
OZAg.360 Products Description & Specification
- Input Voltage: 10~30V DC
Receive range: 800-1000meters
Receiver angel: 360°
- Accuracy: fine: ±2.5mm - ±15mm
Coarse: ±5mm~±30mm
Operating temperature -20℃ - +50℃
- Weight: Receiver 2.6KG, Control panel 3KG
Water and dust proof: IP66

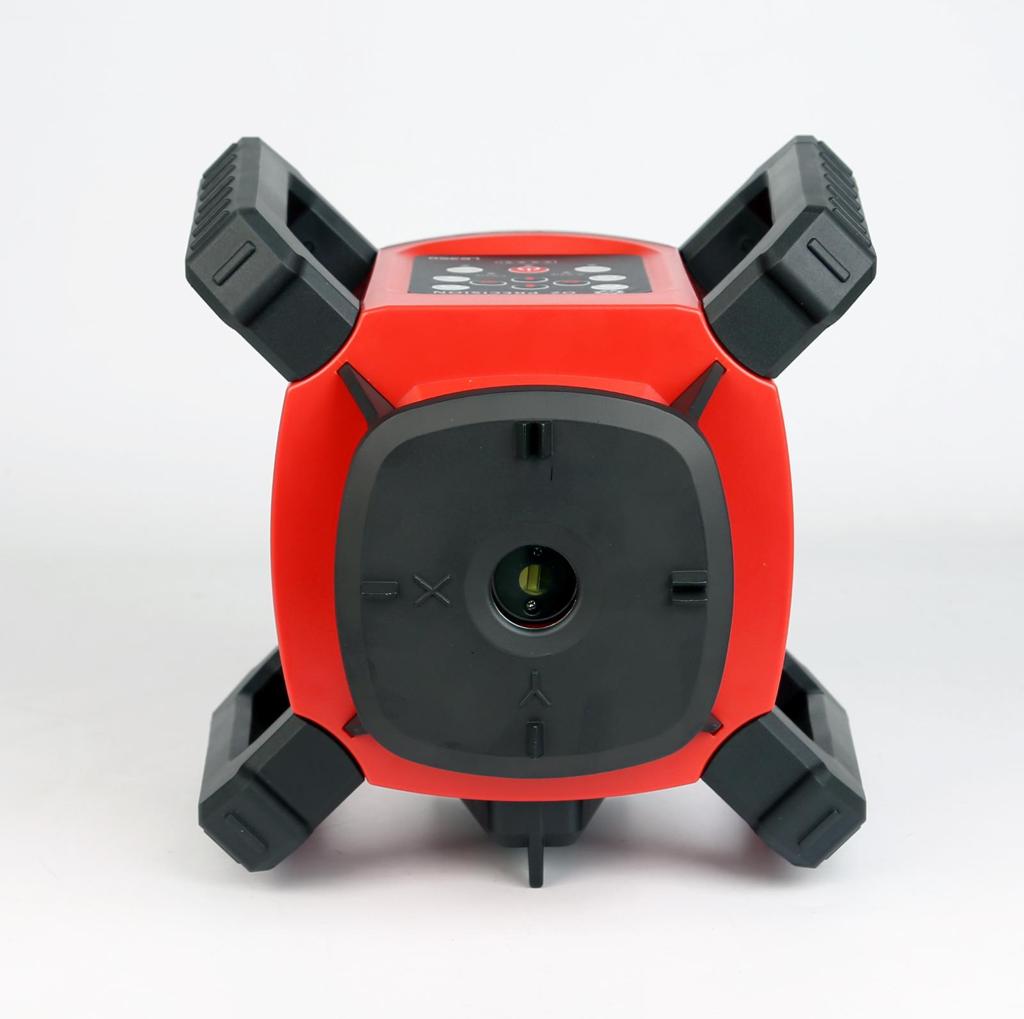

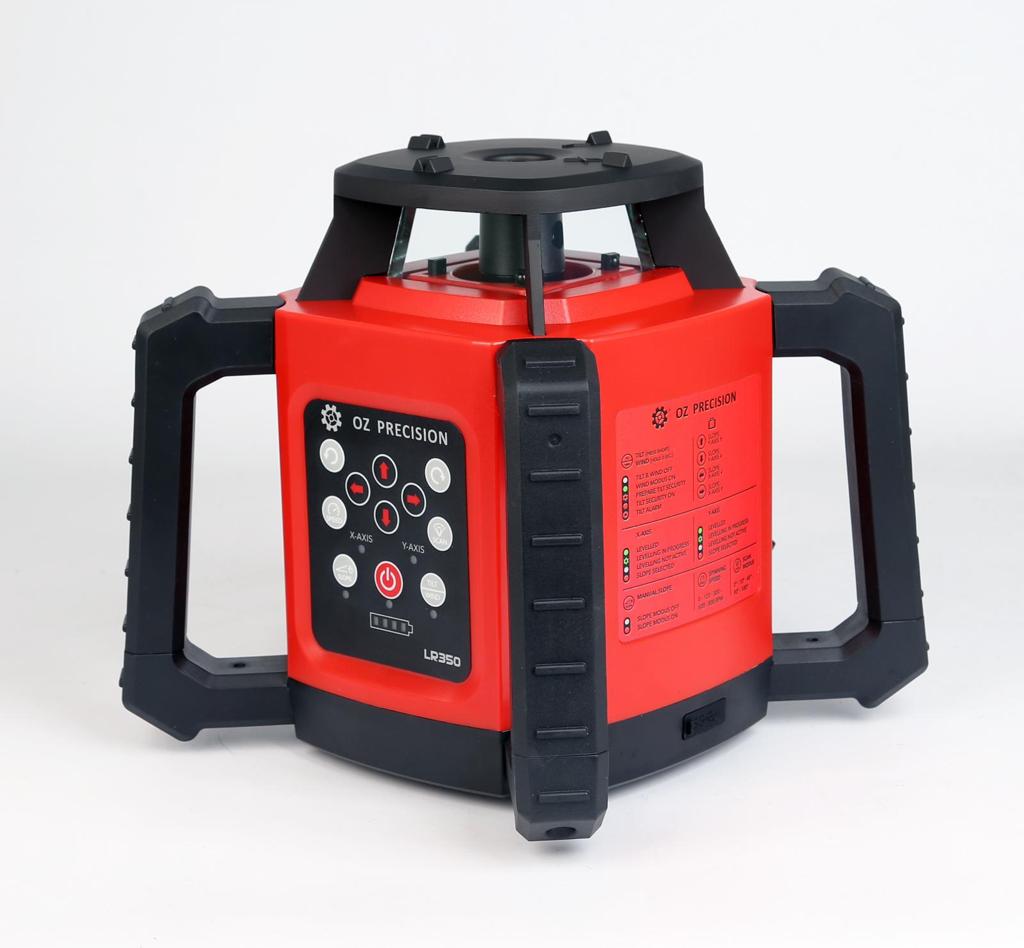

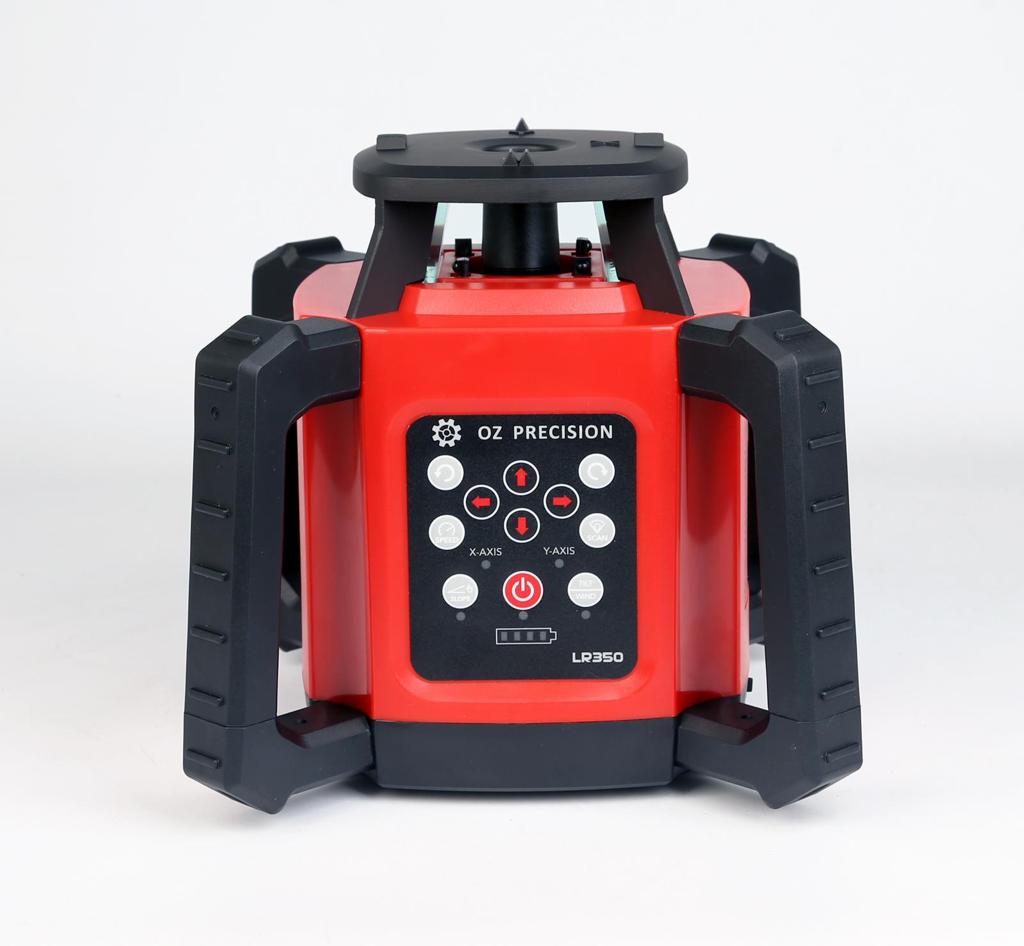

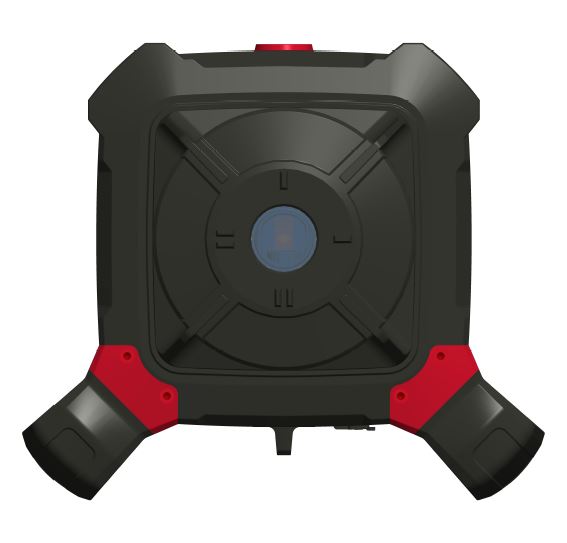

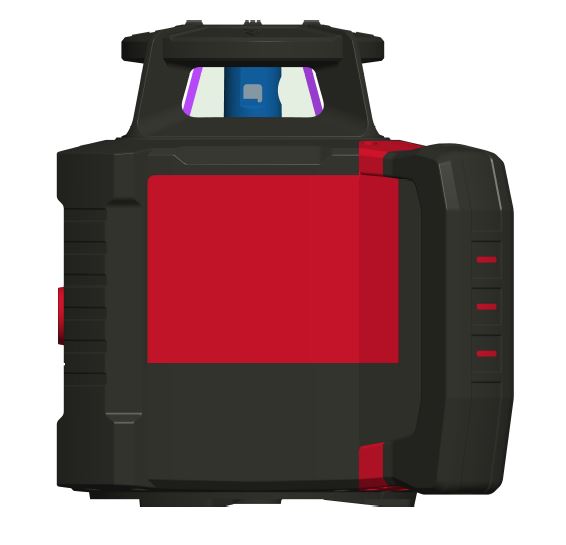

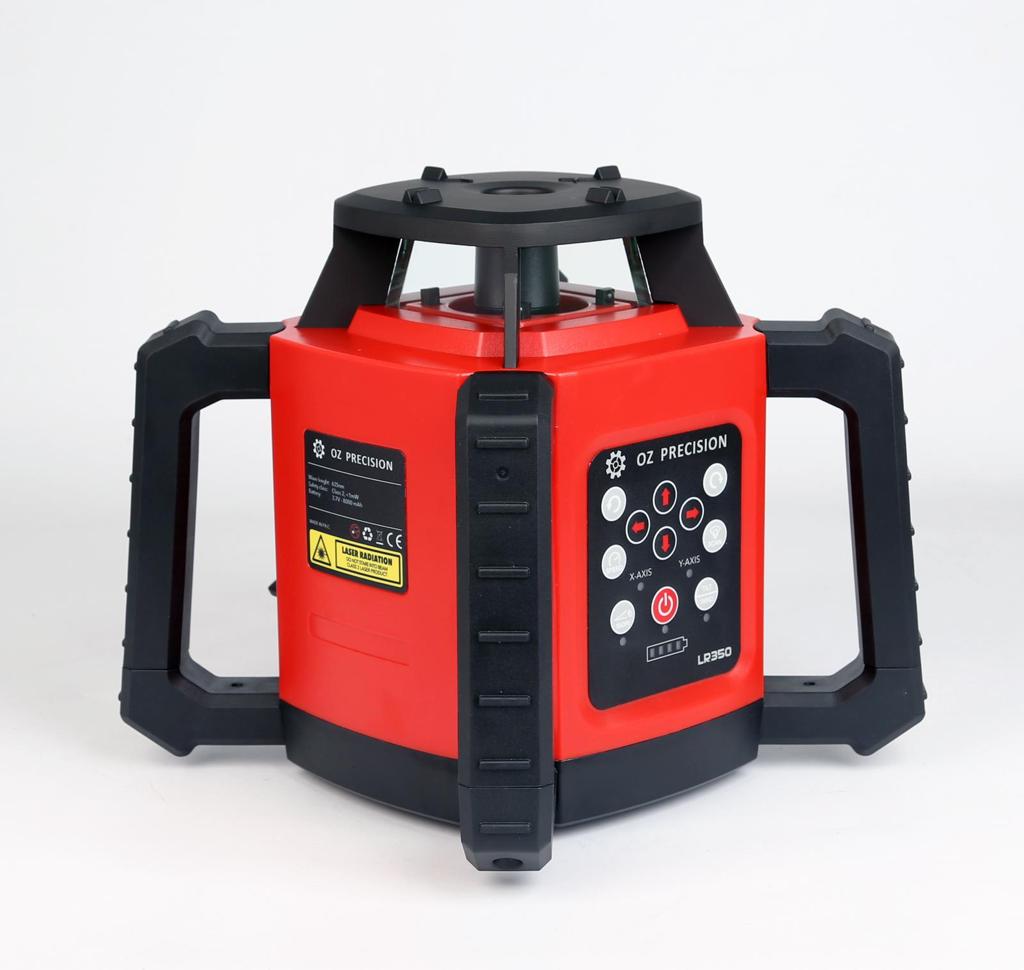

3.LR350 ROTARY LASER
Rugged – Dependable – Accurate – Versatile: The LR350 is a heavy-duty, horizontal and vertical self-leveling. laser. Completely sealed, The LR350 is ideal, inside and out, for both general and interior construction applications.
LR350 is ruggedly designed, including weather- and dust-proofing, and its beam is easily visible (even in brightly lit conditions). It is suitable for agriculture land levelling .
Product Description
- With 4 x handels for an easier grip & protection from dropping down.
- Fast Electronic self-leveling, wide leveling range, high precision and stability. * Can be mounted onto the tripod with 5/8″ head directly.
- With scanning function.
- With clockwise and counterclockwise spining function.
- Manual with dual slopes adjustment.
- Housing made with rubber and high-impact plastic
- Full function IR remote control
- H.I. (elevation) alert with separate switch.
- Superior dust-and water-resistance to withstand demanding construction environments.
Specification
- Level system: Electronic sensor fast leveling.
- Accuracy: 1.5mm @30m
- Self leveling range: ±5°
- Maximum settable slope (X-axis/Y-axis) ±10%
- Operation rang: 800m with machine receiver(Diameter)
- Five head speeds: 0; 120; 300; 600 R.P.M
- Four scan widths:10°; 45°; 90°; 180°
- With both wind and tilt functions
- Red beam:Wavelength:635nm Class II
- Operation temperature: -20ºC ~ +50ºC (-4°F~+122°F)
- Power supply: LI-ION 3.7V – 8000 mAh
- Charger jack: USB-C
- Built-in screw for tripod 5/8″ (H)
- Continiuance working time: Approx. 40hr
- Waterproof and dustproof: IP 66
- Dimension: 220 x 220 x 218 mm
- Weight: 2,76 kg

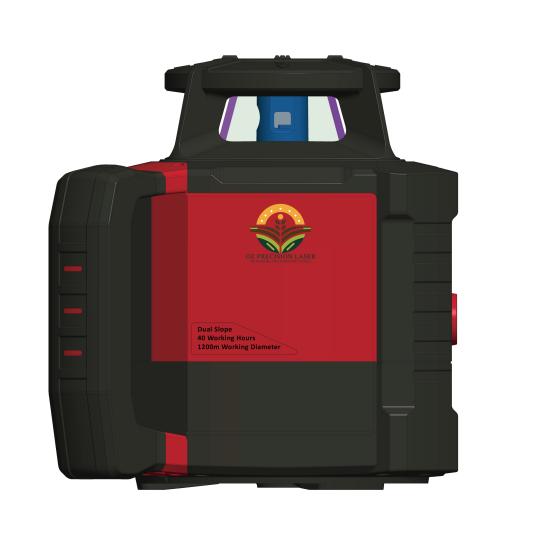

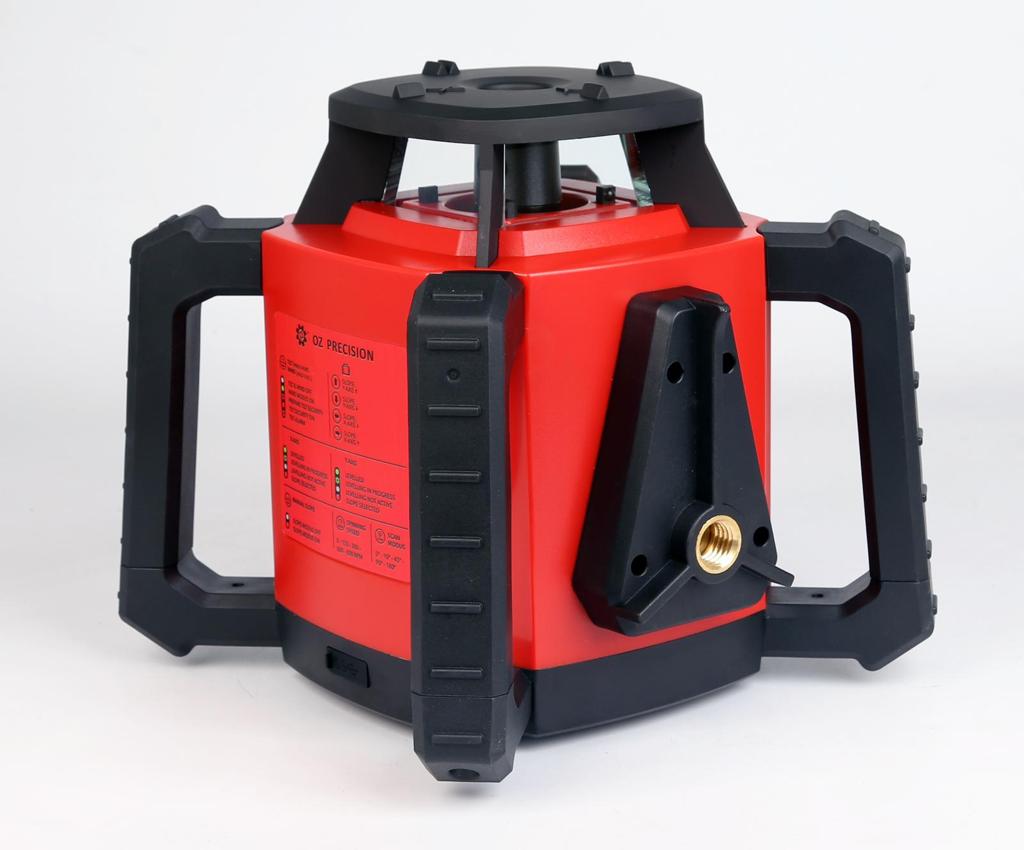

4. OZ PRECISION AG-600 ROTATING LASER LEVEL-RED BEAM
With self-levelling, grade slope function, scan mode, horizontal and vertical, remote controller and Lion Battery with 70 hours Working range. The OZ PRECISION AG -600 range represents excellent value with versatile capabilities for a full range of construction and Agriculture functions. Combined with this is the highly visible heavy duty and robust, water and dust-proof case, with a fully enclosed laser diode for years of trouble-free use. A sensor based electronic-levelling system utilizing a level sensor and stepping motor gives excellent levelling ability and enhanced accuracy.
The simplified design elements and robust componentry also mean reduced calibration and service requirements. All backed by OZ PRECISION warranty, service, and innovative approach.
| Features | |
| Levelling Accuracy | 10 arc seconds (.06@100) (1.5mm@30m) |
| Leveling Technology | Servo motor |
| Self-leveling range | 5 degrees |
| Working Range | 1200m diameter |
| Automatic shut off | 12 minutes out of level |
| Operating temperature | -20c to 60c |
| Laser Wavelength | 635 nm |
| Laser Diode | 30mW |
| Laser Rating | IEC Class 3r |
| Working Time | 70 Hours rechargeable battery |
| Charging Time | 6 Hours |
| Rotating Speed | 360, 600rpm |
| Slope Accuracy | Dual Slope axis |
Introduction:
Electronic Levelling System
Horizontal/Vertical self-levelling (electronic). 1200m range. Dual manual grade slope.
With IP66 waterproof and Dustproof
Batteries can be assembled.
Easy to set up by using together with detector.
Metal head to protect the laser.
Type C charger hole, easy to replace charger. Long working time up to 70 hours
Stable handlebar, easy to handle
2 years Warranty
Basic Kits: AG-600 Rotating Laser, Charger, Lion-battery, Manual and carrying case.
